Fogging-Tester EB 03C

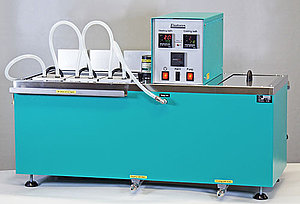

EB 03C – Fogging Tester

The EB 03C by Elastocon offers a modern and reliable solution for testing the fogging of windshields according to international standards. This compact device combines heating and cooling baths using advanced Peltier technology in a single system.

Key Advantages:

✅ Combined heating and cooling functionality in one device
✅ Compact and user-friendly design
✅ Precise control and easy operation

Standards Compliance:

✔ ISO 6452 | SAE J1756 | other automotive standards

Technical Specifications:

  • Heating Bath: +40 °C to +130 °C
  • Cooling Bath: +20 °C to +80 °C

Testing Methods:

  • Gravimetric: Accurate weight determination
  • Optical: Using gloss meter (HACS-380) or haze meter (HATH-100)

Standard Accessories (also available separately):

  • Digital temperature controllers with alarm (2x, accuracy ±0.1 °C)
  • Solid-state relays for secure control (2x)
  • Selector switch for temperature sensors
  • ISO/DIN test cups (6x, EB 03.03)
  • Silicone sealing rings (6x, EB 03.01)
  • Cooling plates (6x, EB 03.06)
  • Test glass sets with stand (2 sets, EB 03.04 / EB 03.05)
  • Stainless steel sample holders (6x, EB 03.07)
  • Aluminum cup ring holders (6x, EB 03.08)
  • Stainless steel cup stand (heating bath)
  • Spirit level
  • Aluminum foil discs for gravimetric tests (10x, EB 03.09)
  • Plastic spacers (EB 03.11)
  • Filter paper (10x, EB 03.10)

Optional Accessories:

  • Special oven bath fluid (EB 03.12)
  • DIDP reference fluid (EB 03.13)
  • High-quality borosilicate glass plates (EB 03.15)
  • Fluororubber sealing rings (EB 03.16)
  • Die cutter (EP 04-dia 80)
  • High-precision analytical balance (KEABT 220-5DNM)
  • Gloss meter (HACS-380)
  • Haze meter (HATH-100)
