Abrasion Tester Bareiss – Automated Device for Abrasion Resistance Testing
Accurate Determination of Abrasion Resistance – Precise and Automated

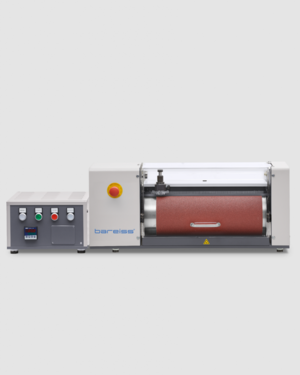

The Abrasion Tester Bareiss is an automated testing device for determining the abrasion resistance of elastomers. The testing process is based on the material loss during the test, supported by the integrated cleaning system for efficient operation.
Product Highlights
🟢 Automated testing procedure for abrasion resistance
🟢 Measurement of material loss for precise abrasion determination
🟢 Integrated cleaning system – ensures easy and clean test performance
🟢 User-friendly operation for fast and reliable testing
🟢 Ideal for elastomers and other soft materials
Applications
The Abrasion Tester Bareiss is perfect for material testing in the rubber industry, plastics engineering, and research institutions. It provides precise data on the abrasion behavior of elastomers and enables detailed analysis of material wear.
💬 Interested in the Abrasion Tester Bareiss or have questions about its applications?
Contact us – we are happy to assist you and provide a tailored quote!
| Measurement methods | Abrasion resistance method A with fixed non-rotating sample, abrasion resistance method B with rotating sample, abrasion path variable to 20 or 40 metres |
| Standards | ASTM D5963, DIN ISO 4649 |
| Sample geometry | Ø16,2mm |
| Ambient conditions | This abrasion testing machine can be used to determine the material loss of an elastomer sample at ambient temperature only. To test the abrasion resistance of a material under additional temperature load, use our abrasion testing machine Q. This is equipped with a quartz heater and allows the abrasion drum to be heated up to 100°C |
| Areas of application | Determination of the resistance of an elastomer to friction loss with a rotating or stationary test specimen, e.g. on tyres, conveyor belts, shoes, floor coverings, etc. The abrasion testing machine is optionally available with a cleaning device and specimen heating |
| Technical data | Power supply: 100 - 240 V; 50/60 Hz; 100 VA, Protection class: Dimensions: 760 x 360 x 320 mm, Weight: 50 kg, Abrasion path: 40 / 20 m |
| Interface | Plug-in power supply |
