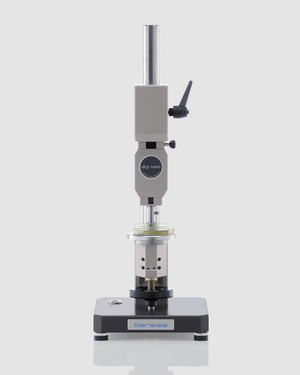

digi test II Bareiss – Modular Digital Measuring Device for Fully Automatic Hardness Testing
Fully Automated Precision for Demanding Applications
The digi test II Bareiss is a modular digital measuring device for fully automatic hardness testing according to Shore, VLRH, and IRHD. Designed for hardness testing of polymers with variable test geometries, it offers the highest precision and flexibility in material testing.
Product Highlights
🟢 Fully automatic hardness testing according to Shore, VLRH, and IRHD
🟢 Modular system – easily adaptable to various testing requirements
🟢 For polymer materials – ideal for plastics and elastomers
🟢 Variable test geometries for a wide range of sample shapes and sizes
🟢 High precision and user-friendly operation for fast and reliable results
Applications
The digi test II is perfect for demanding testing tasks in the plastics industry, material research, and quality control. It is ideal for testing polymers, elastomers, and other materials that require precise hardness measurement.
💬 Want to learn more about the digi test II or need a customized quote?
Contact us – we’re happy to assist you and create a tailored solution!
| Measurement methods | Shore A, Shore A0, Shore D, Shore 0, Shore 00, Shore 000, Shore 000S, Shore E, Shore B, Shore C, Shore D0, Micro Shore A, Micro Shore D, Shore AM, Shore M, IRHD L, IRHD N, IRHD M, IRHD H, VLRH |
| Standards | ASTM D1415, ASTM D2240, DIN ISO 48-2, DIN ISO 48-3, DIN ISO 48-4, DIN EN ISO 868, TD 00002001, TD 00002002, NFT 46-003 |
| Sample geometry | O-rings, sheet material, moulded parts and thin samples |
| Resolution | 0.1 |
| Areas of application | In rubber and plastics production as well as in quality control, hardness tests are now carried out on finished parts instead of standardised samples. The digi test II works fully automatically and is therefore largely operator-independent. The measuring devices are used to determine the hardness of all elastic materials, polymers and elastomers |
| Technical data | Power supply: 100 - 240 VAC; 50 / 60 Hz Protection class: IP 20, Dimensions: Test stand: 200 x 250 x 570 mm Electrical unit: 260 x 260 x 11 mm, Weight: Test stand: 14.0 kg Electrical unit: 2.5 kg |
| Interface | USB and RS 232 interfaces for data transmission |
