Rebound Elasticity Tester – Automated Testing of Elasticity
Precise determination of rebound elasticity for elastomers and similar materials – fully automated and intuitively operable
The Rebound Elasticity Tester reliably measures the elasticity behavior of your samples. The integrated spring clamp system flexibly adapts to varying sample thicknesses up to 60 mm and securely holds the specimen in place. The entire test procedure is performed automatically at the push of a button.
Product Highlights
🟢 Fully automated test procedure – standard-compliant and customizable
🟢 Self-checking pendulum swing time for maximum repeatability
🟢 Flexible spring clamping system – quick adjustment for various samples
🟢 Easy sample positioning using integrated scale
🟢 Sample detection – protects the anvil plate from damage

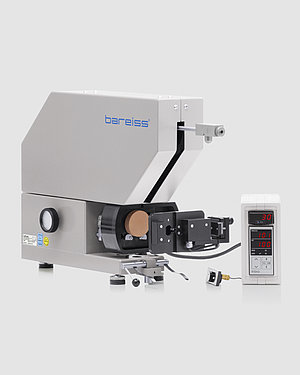

🟢 Optional temperature control module – testing under thermal influence
🟢 Optional: Clamping unit with 200 N force to reduce operator influence
Applications
The Rebound Elasticity Tester is ideal for research, quality control, and production monitoring of elastic materials. It supports both standardized tests and user-defined procedures – delivering meaningful results, even under temperature conditions.
💬 Would you like to learn more about the Rebound Elasticity Tester or request a quote?
Contact us – we are happy to advise you and provide a customized offer!
Technical Data – Rebound Tester
| Component | Dimensions (W × H × D) | Weight |
|---|---|---|
| Rebound Tester (Manual) | min. 30 × 38.5 × 45.5 cm max. 30 × 38.5 × 63.5 cm | 48.00 kg |
| Rebound Tester (Automatic) | min. 30 × 40 × 51 cm max. 30 × 40 × 64 cm | 55.00 kg |
| Electronics Unit | min. 26 × 11.5 × 26.5 cm max. 26 × 11.5 × 34 cm | 2.32 kg |
Electrical Specifications
- Power Supply: 100 – 240 VAC; 50/60 Hz
- Protection Class: IP 30
Pendulum
- Length: 200 mm
- Drop Angle: 90°
- Impact Velocity: 2 m/s
| Measurement Method | Schob pendulum principle |
| Standards | ASTM D7121, DIN 53512, ISO 4662 |
| Application Areas | Method for determining the rebound elasticity of elastomers |
| Sample Geometry | Sample thickness: 12–60 mm, Diameter: 29–53 mm |
| Resolution | 0.1% rebound elasticity |
| Interface | USB or RS 232 interfaces for data transfer (software required) |
| Environmental Conditions | Laboratory conditions according to DIN ISO 23529 |
